Zero-Force Members Revealed

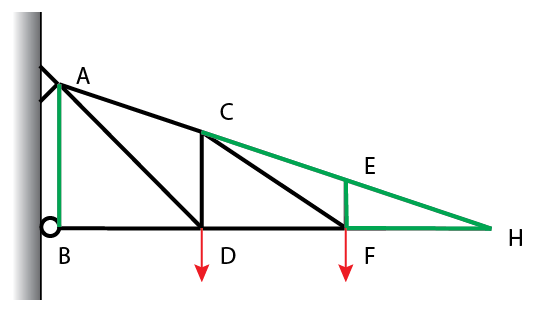

Here are the answers for the zero-force member question from here. Zero-Force members are highlighted in green.

AB - summing the vertical forces at joint B reveals AB to be zero.

EF - CE and EH are parallel and there are no external forces at joint E (Rule 1).

EH - Joint H has only two members and no external force, both members are zero force (Rule 2).

FH - See EH.

CE - Re-analyzing joint C, after knowing that EH is zero, reveals this member is zero.



Please comment if anything is amiss or you need more clarification, I will gladly respond!
